Compact Single BowlU4045 / 400 x 450 mm
14 current models
Large Single BowlU8045 / 800 x 450 mm
Double BowlUD8245B / 820 x 450 mm
OEM / ODM stainless steel sink manufacturer
16 Gauge Stainless Steel Undermount Sink Series
Fourteen current models cover 400-1000 mm widths, including compact bar sinks, standard single bowls and double-bowl layouts. Specify SUS304 or the required steel grade, brushed or PVD finish, sound-control treatment, drain set, accessories, logo and export packing.
Current Models14
Width (mm)400-1000
Bowl Layouts2

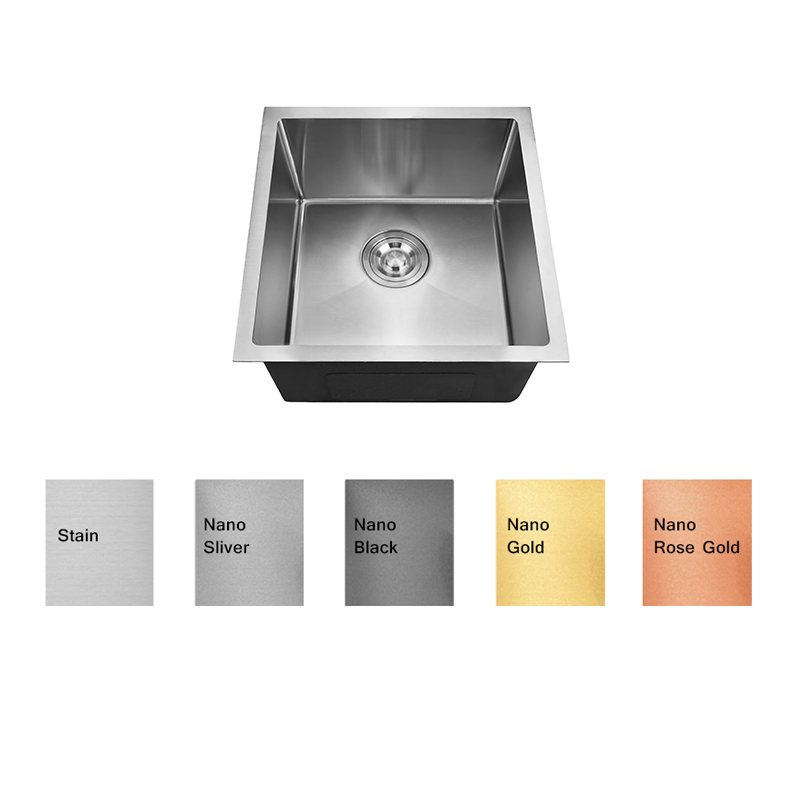

Available finishes
Product construction
SUS304 Stainless Steel Option for Kitchen Use

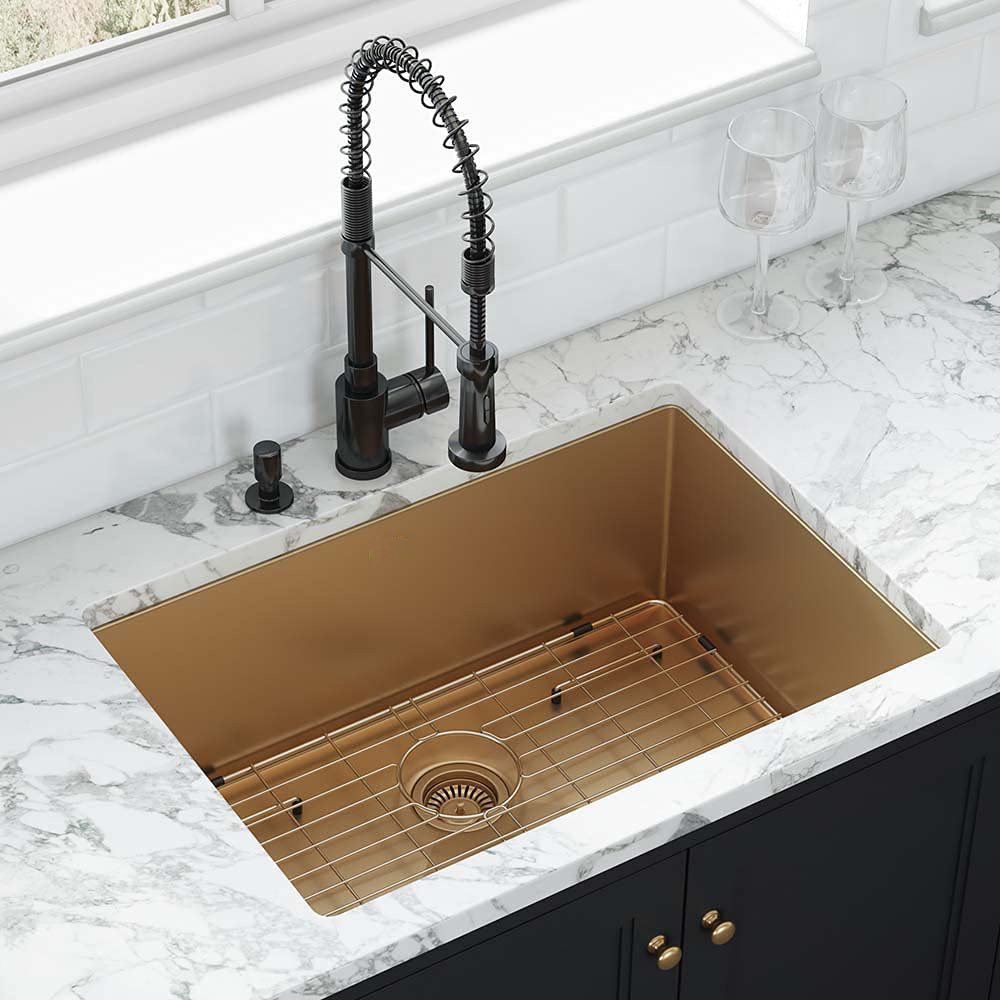

The undermount rim sits below the countertop, allowing water and crumbs to be wiped directly into the bowl. Material grade, thickness, finish, sound pad, anti-condensation coating, drain opening and accessories are confirmed on the approved production sheet for each order.
14 current models
Choose by Width and Bowl Layout
All listed models are 450 mm front to back. Select a width from 400 mm to 1000 mm, then choose a single bowl, equal double bowl or 60/40 double bowl. Confirm the final cutout and cabinet dimensions from the approved drawing before countertop fabrication.
U4045400 x 450 mm
Single Bowl / Bar Sink
Quick ViewSingle Bowl / Bar Sink

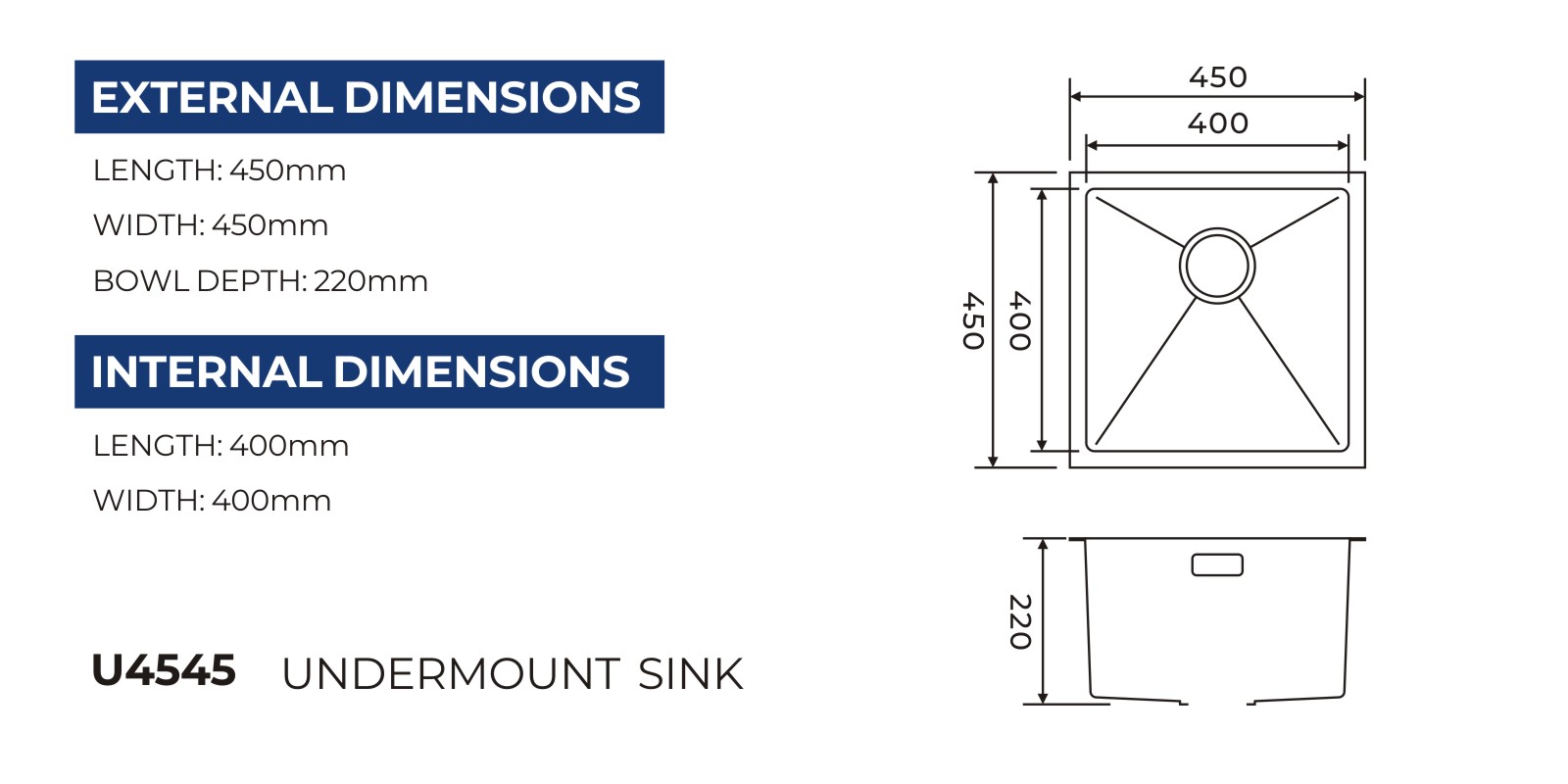

U4545450 x 450 mm
Single Bowl / Bar Sink
Quick ViewSingle Bowl / Bar Sink

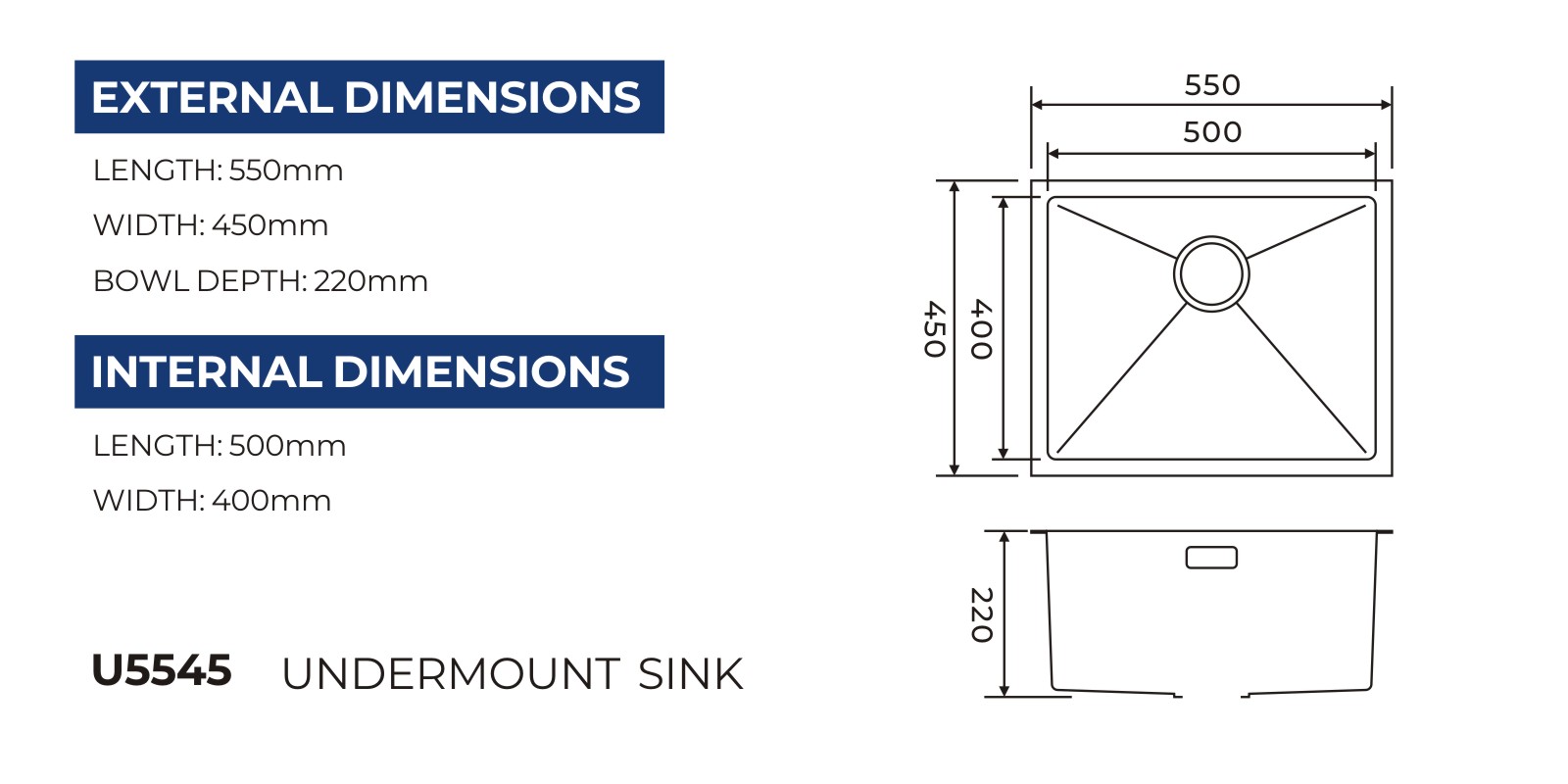

U5545550 x 450 mm
Single Bowl
Quick ViewSingle Bowl

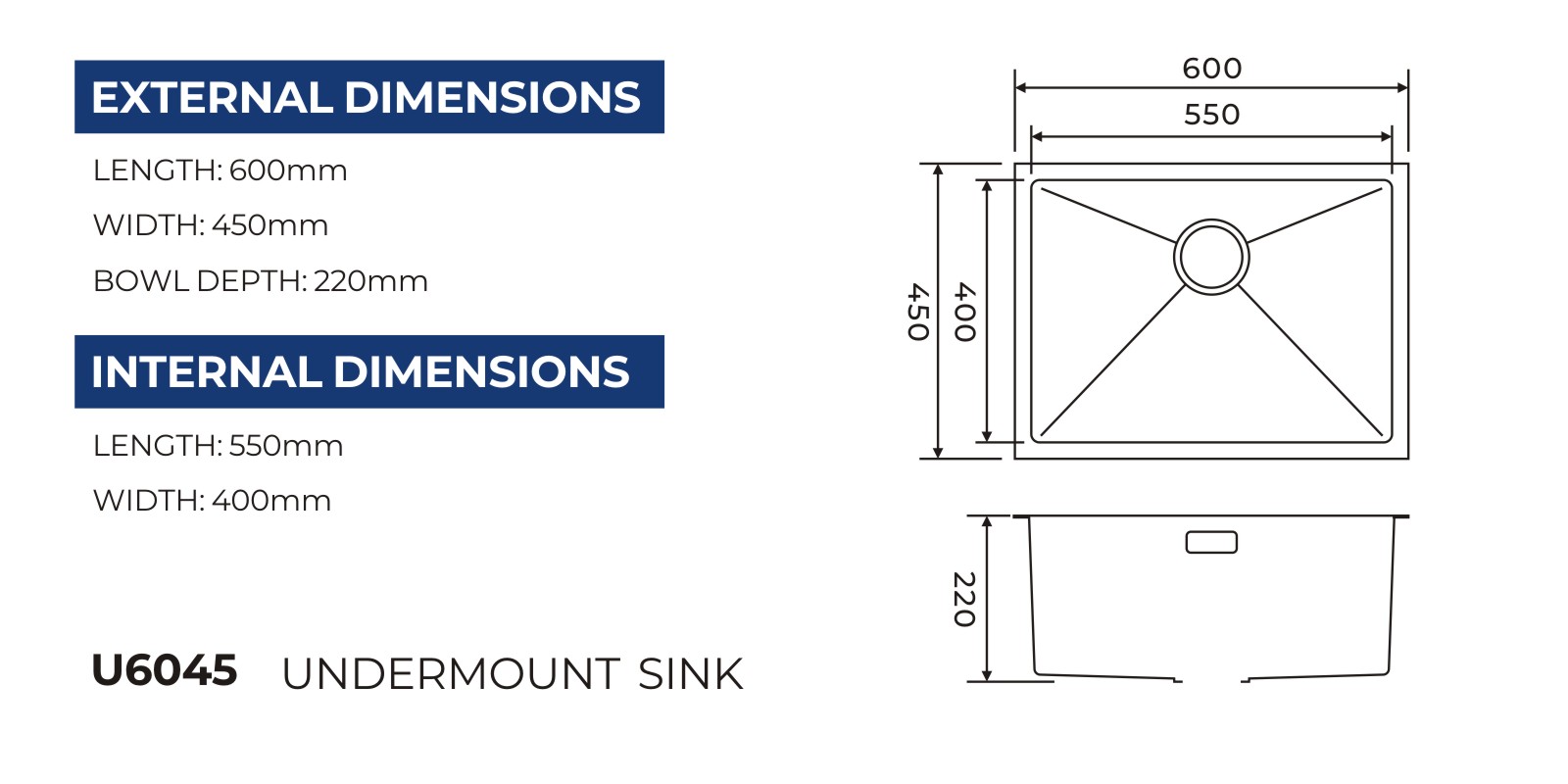

U6045600 x 450 mm
Single Bowl
Quick ViewSingle Bowl
U6545650 x 450 mm
Single Bowl
Quick ViewSingle Bowl

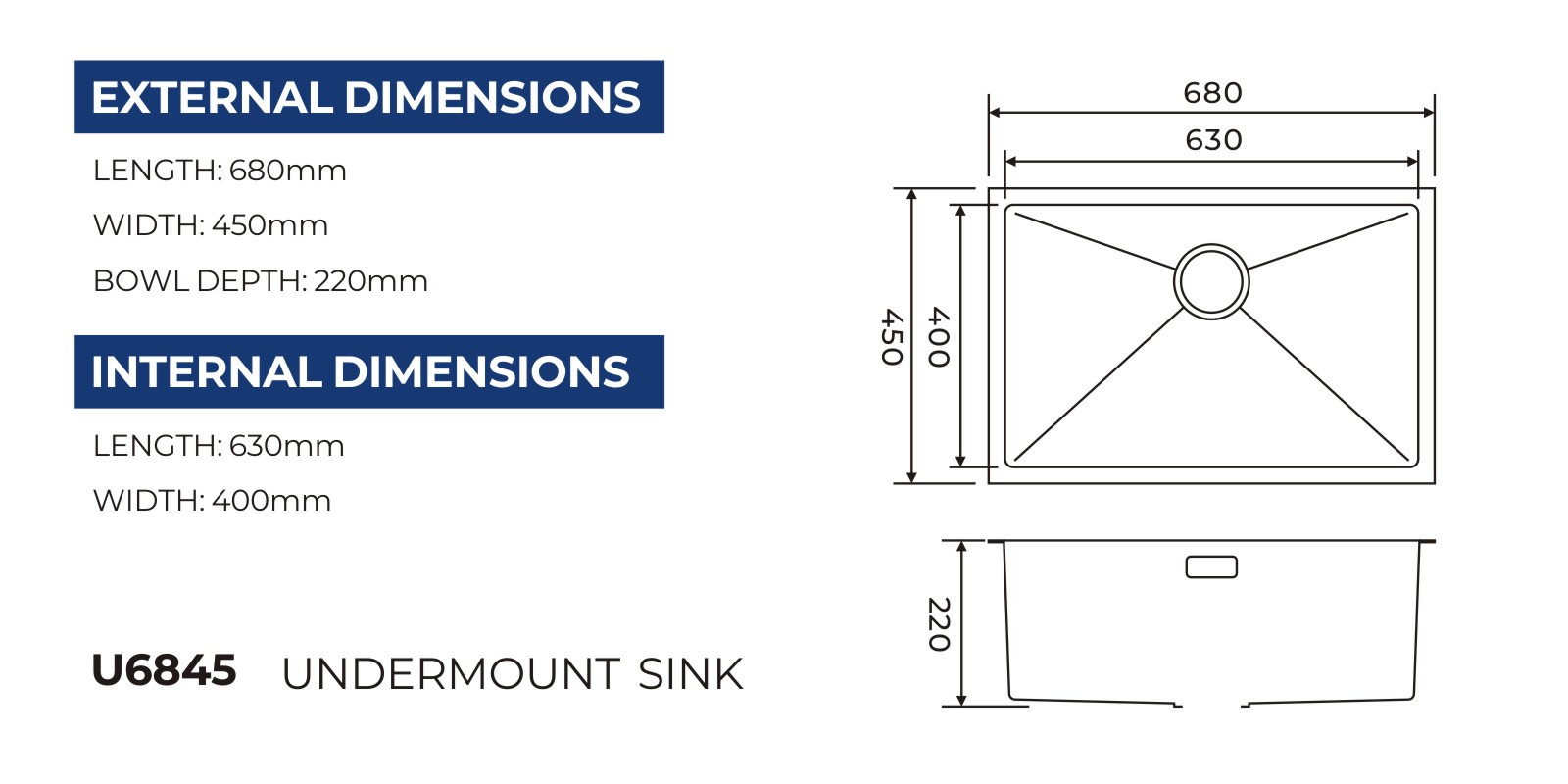

U6845680 x 450 mm
Single Bowl
Quick ViewSingle Bowl

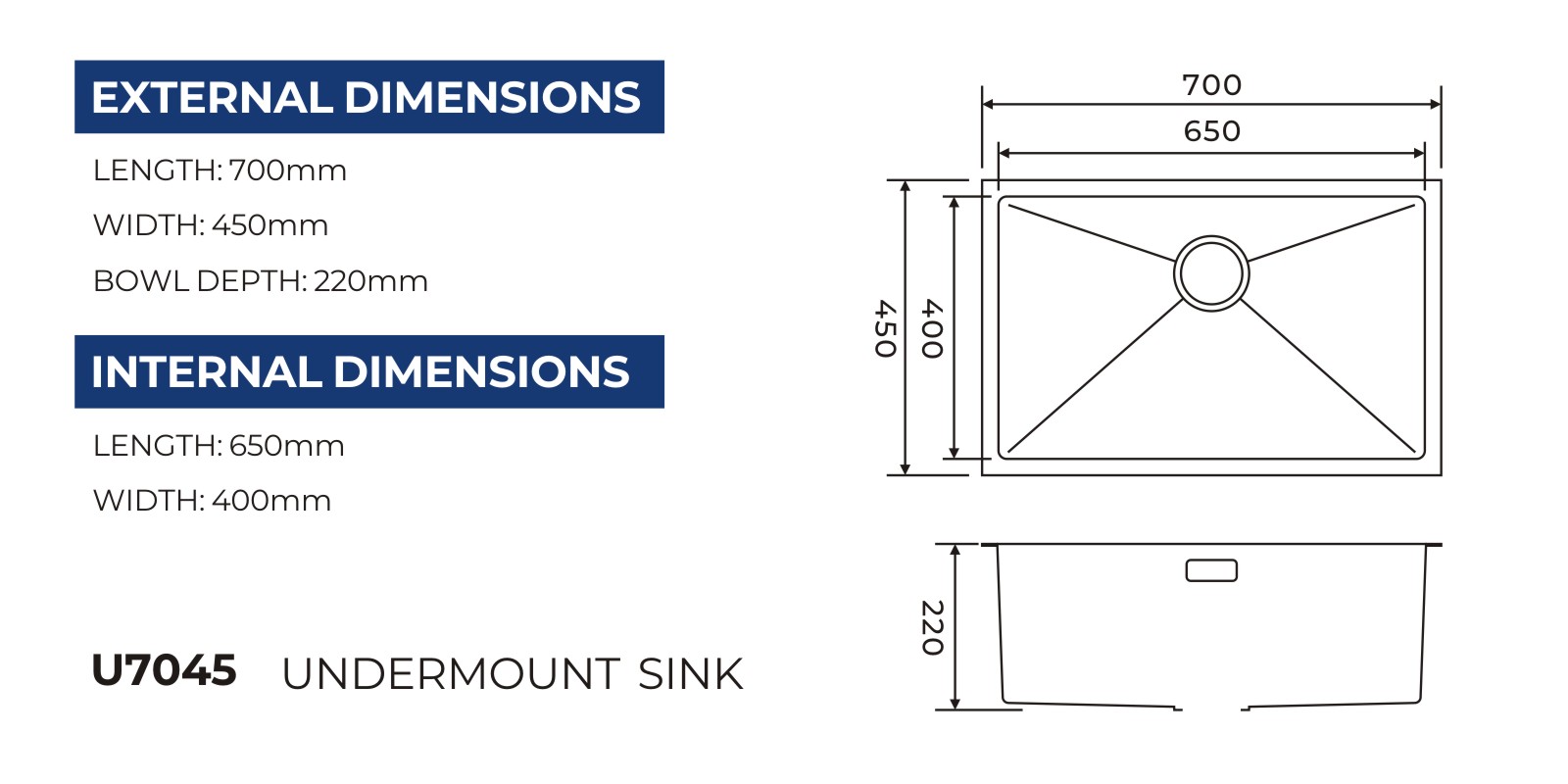

U7045700 x 450 mm
Single Bowl
Quick ViewSingle Bowl

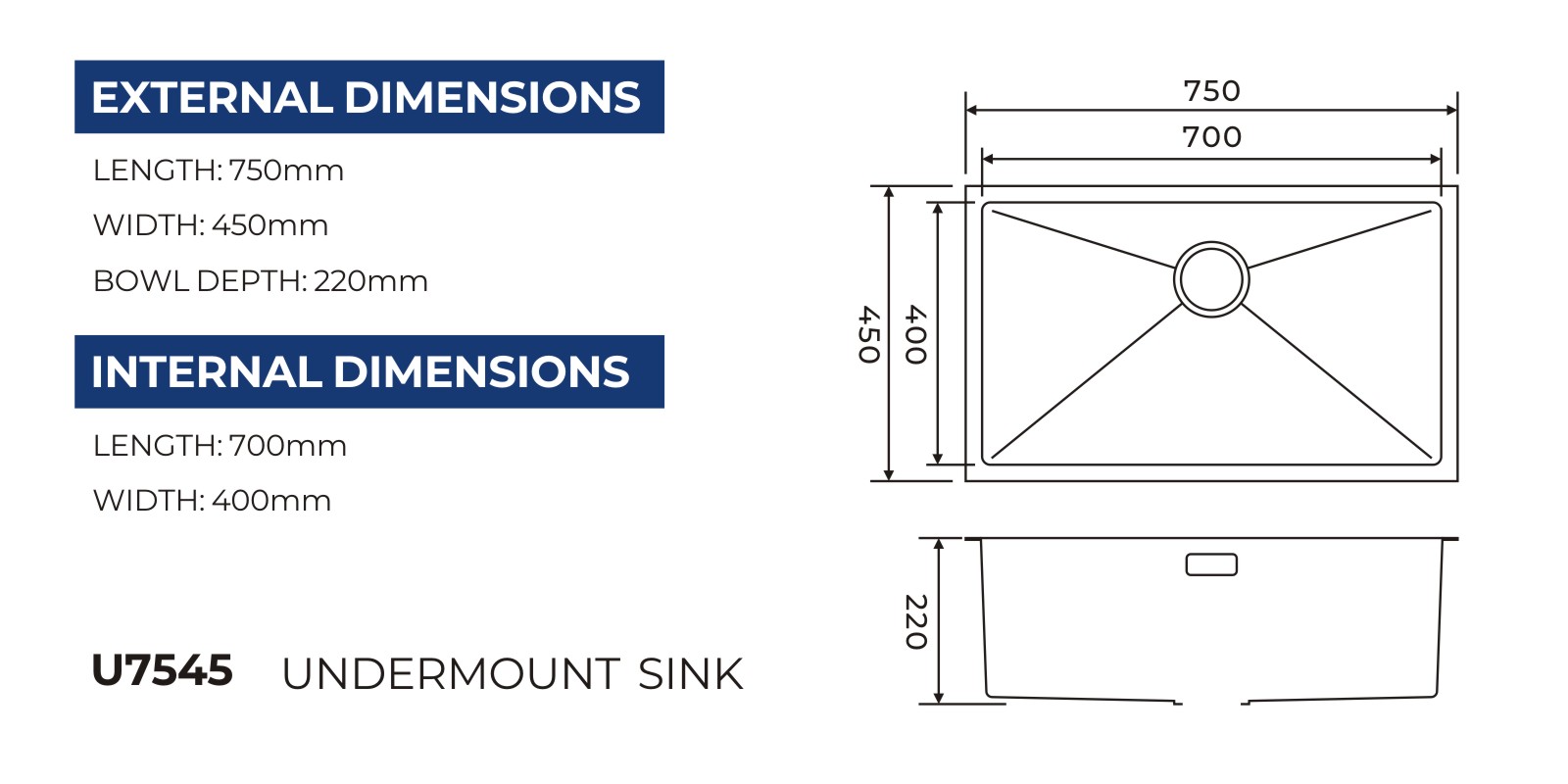

U7545750 x 450 mm
Single Bowl
Quick ViewSingle Bowl
U8045800 x 450 mm
Single Bowl
Quick ViewSingle Bowl

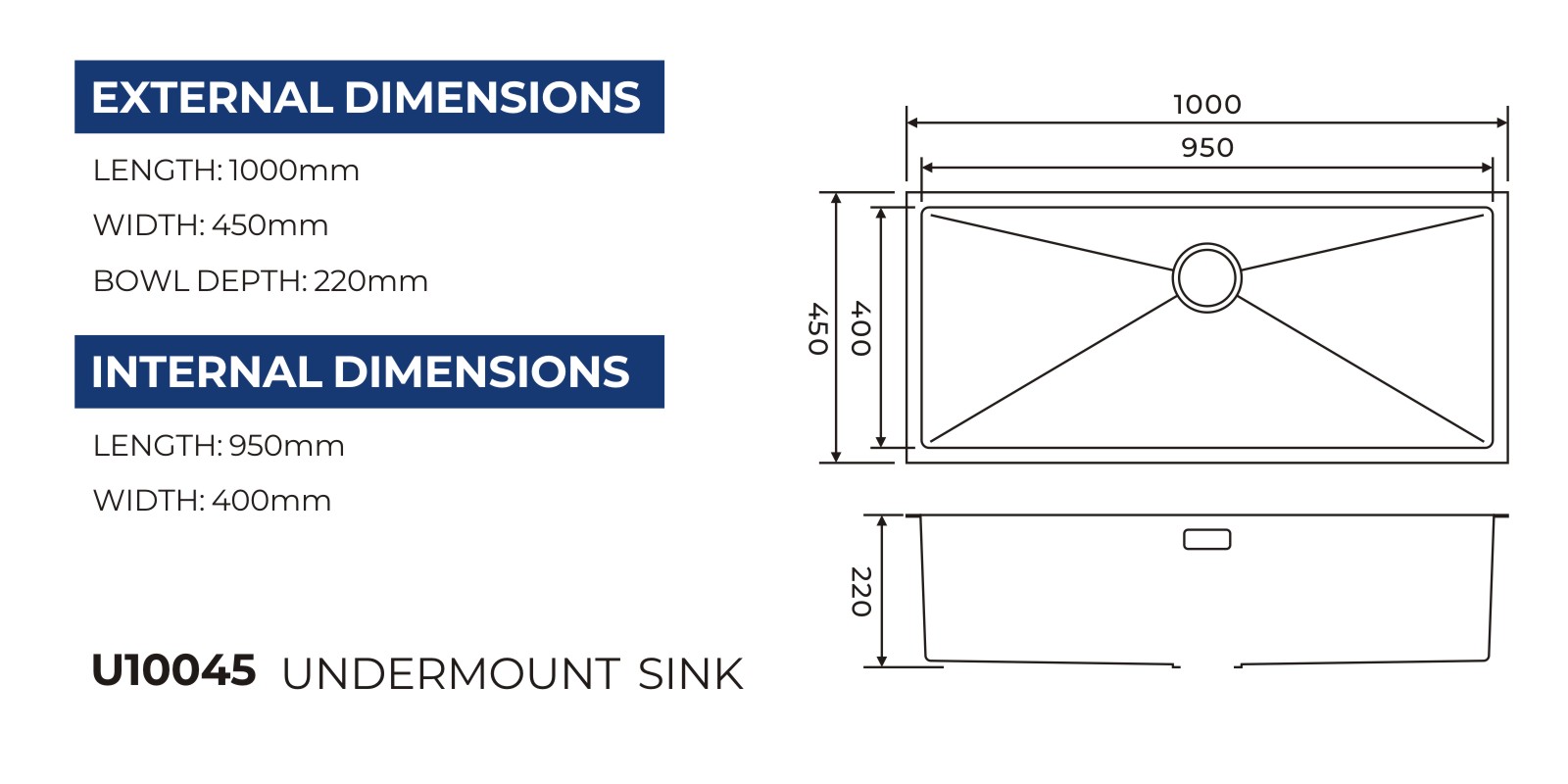

U100451000 x 450 mm
Single Bowl
Quick ViewSingle Bowl
UD8045800 x 450 mm
Double Bowl
Quick ViewDouble Bowl

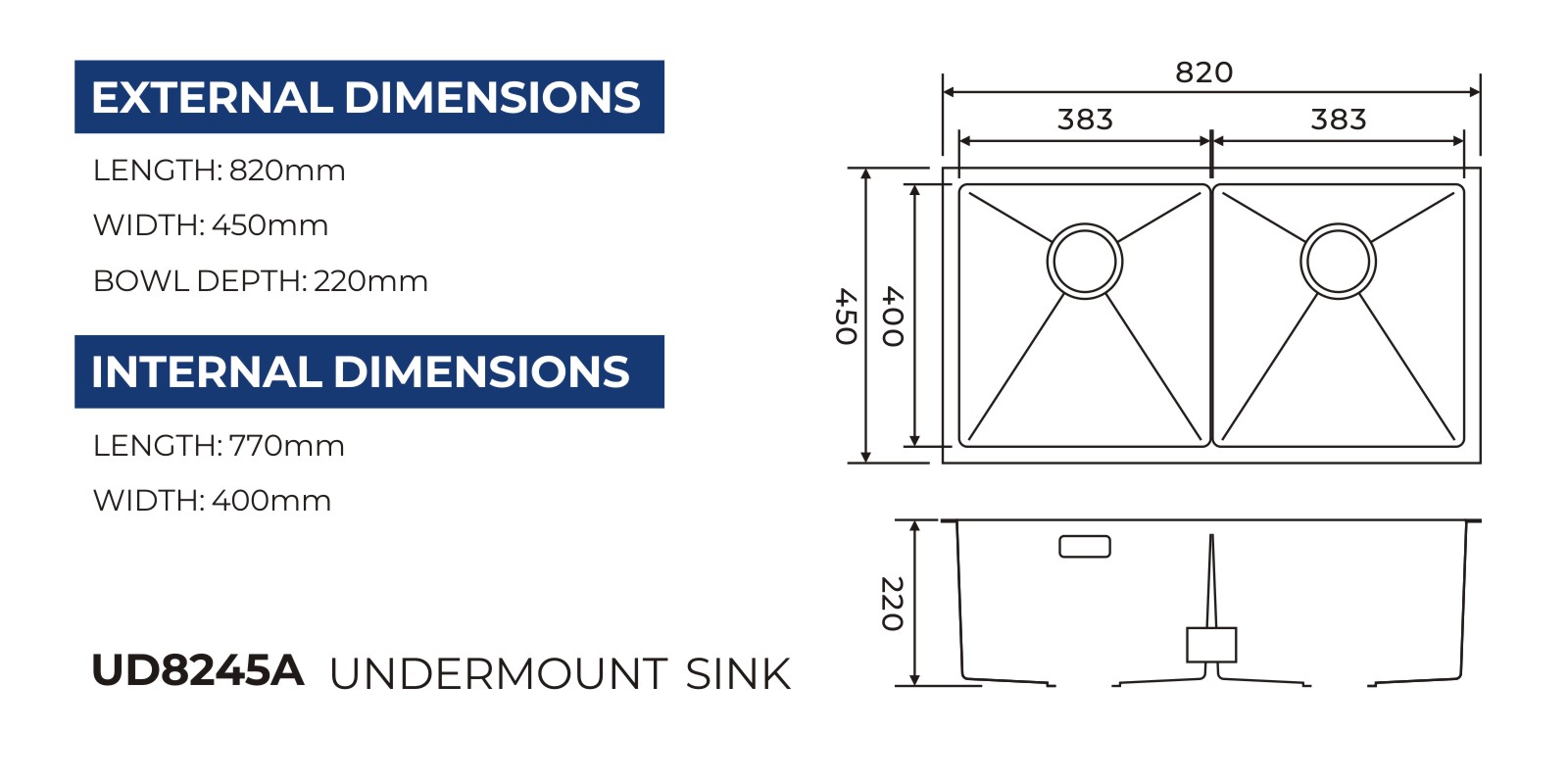

UD8245A820 x 450 mm
Double Bowl 50/50
Quick ViewDouble Bowl 50/50
UD8245B820 x 450 mm
Double Bowl 60/40
Quick ViewDouble Bowl 60/40
UD8245C820 x 450 mm
Double Bowl / 1-Hole Deck
Quick ViewDouble Bowl / 1-Hole Deck
| Model | Overall Size | Bowl Layout | Typical Positioning |
|---|---|---|---|
| U4045 | 400 x 450 mm | Single Bowl | Compact bar / prep sink |
| U4545 | 450 x 450 mm | Single Bowl | Compact bar / prep sink |
| U5545 | 550 x 450 mm | Single Bowl | Single-bowl kitchen sink |
| U6045 | 600 x 450 mm | Single Bowl | Single-bowl kitchen sink |
| U6545 | 650 x 450 mm | Single Bowl | Single-bowl kitchen sink |
| U6845 | 680 x 450 mm | Single Bowl | Single-bowl kitchen sink |
| U7045 | 700 x 450 mm | Single Bowl | Single-bowl kitchen sink |
| U7545 | 750 x 450 mm | Single Bowl | Long single-bowl sink |

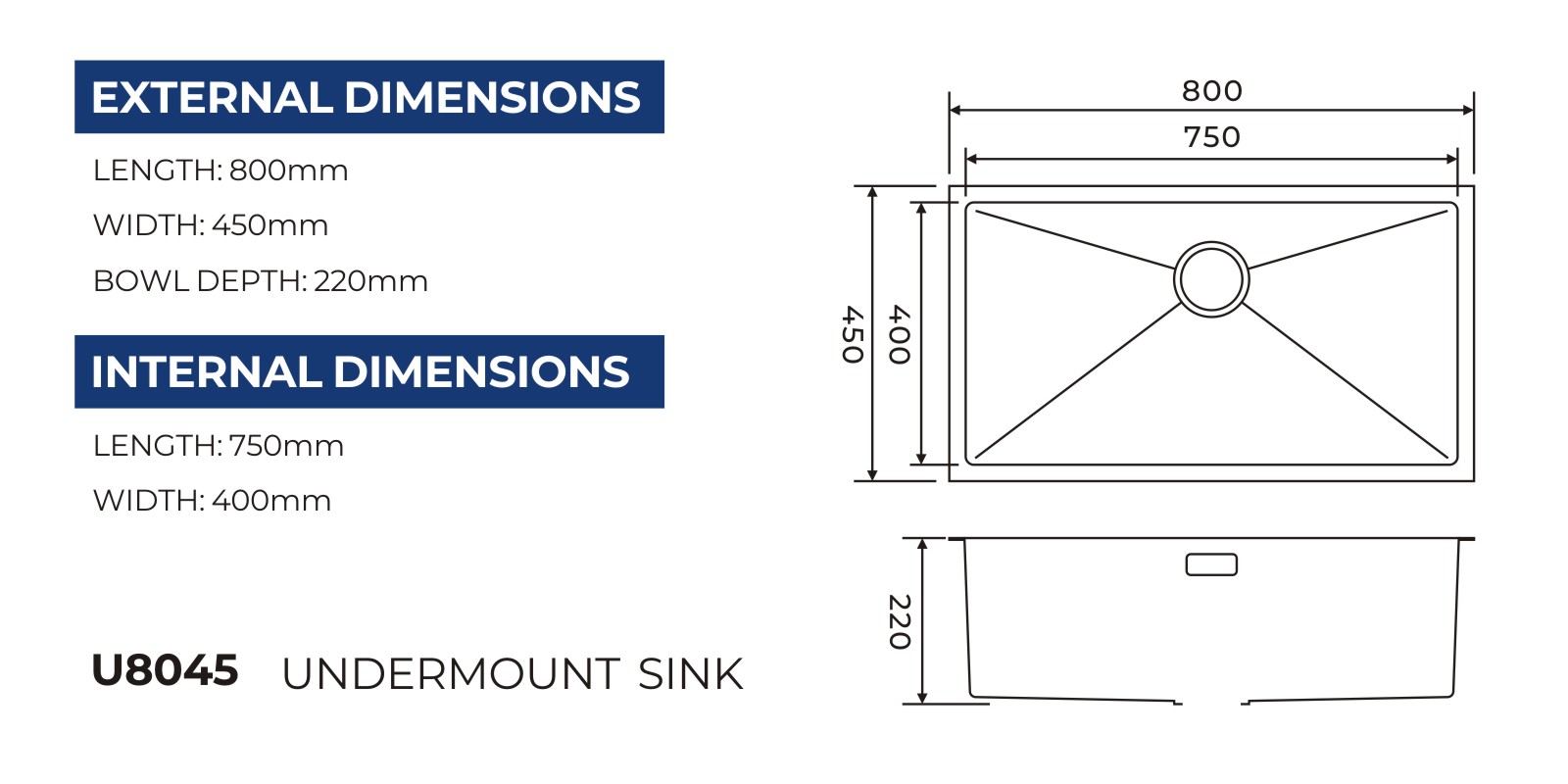

| U8045 | 800 x 450 mm | Single Bowl | Long single-bowl sink |
| U10045 | 1000 x 450 mm | Single Bowl | Extra-long single bowl |

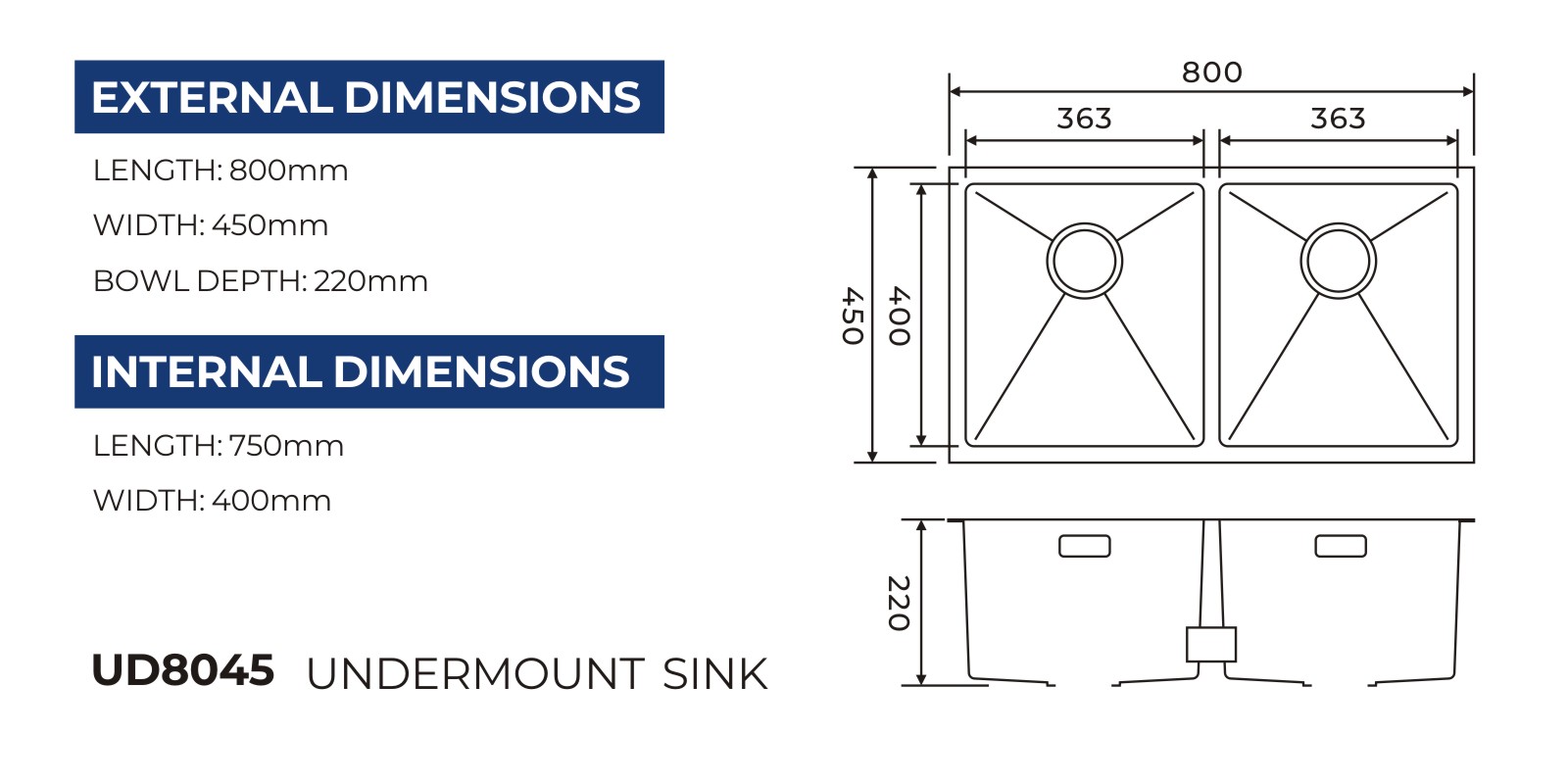

| UD8045 | 800 x 450 mm | Double Bowl | Balanced double bowl |
| UD8245A | 820 x 450 mm | Double Bowl 50/50 | Equal double bowl |
| UD8245B | 820 x 450 mm | Double Bowl 60/40 | Asymmetric double bowl |

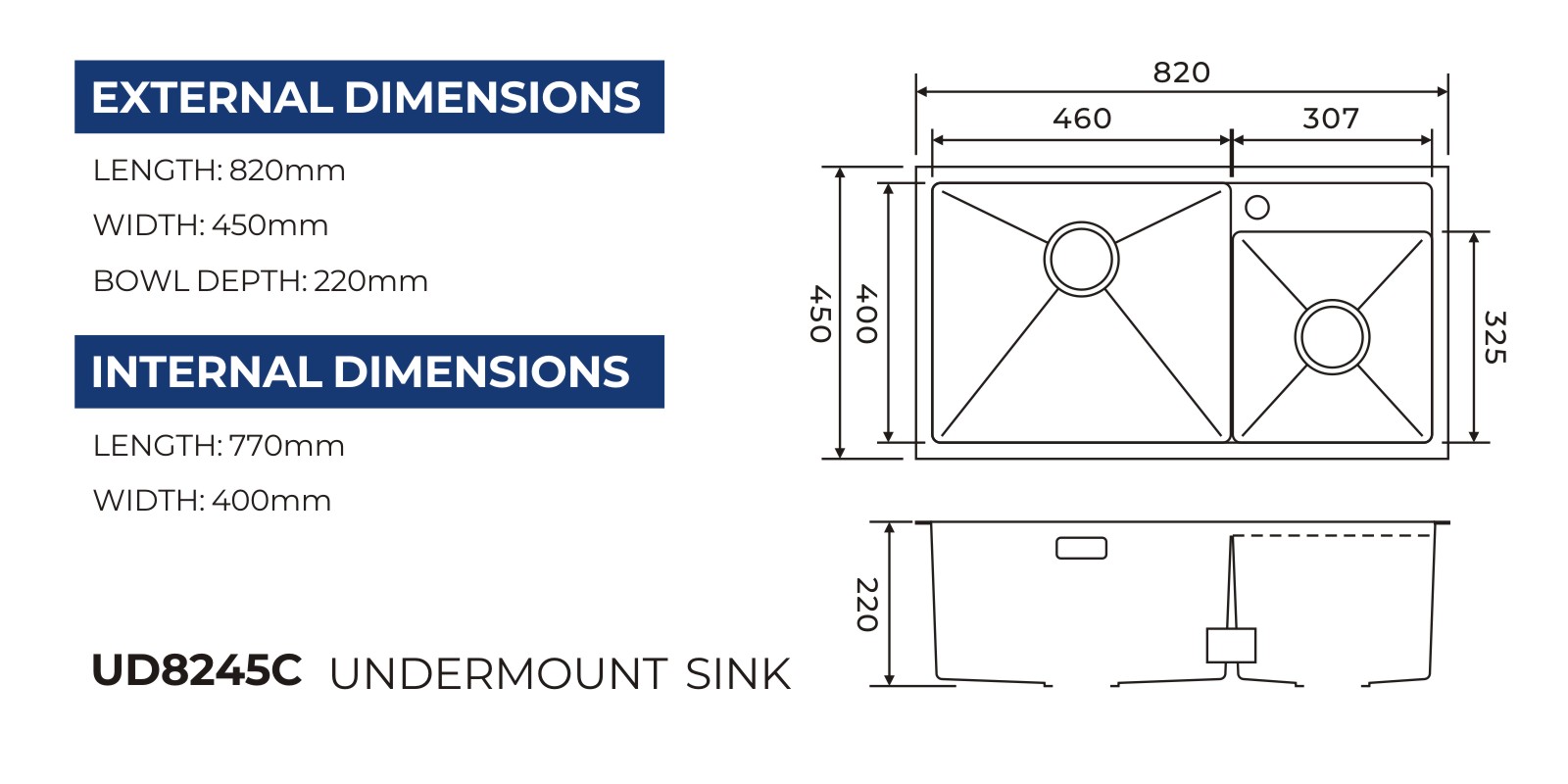

| UD8245C | 820 x 450 mm | Double Bowl / 1-Hole | Double bowl with deck hole |
Selected undermount model
U4045
400 x 450 mm compact single bowl for bar or prep installations.
Overall Size400 x 450 mm
Bowl LayoutSingle Bowl / Bar Sink
MaterialStainless Steel
InstallationUndermount

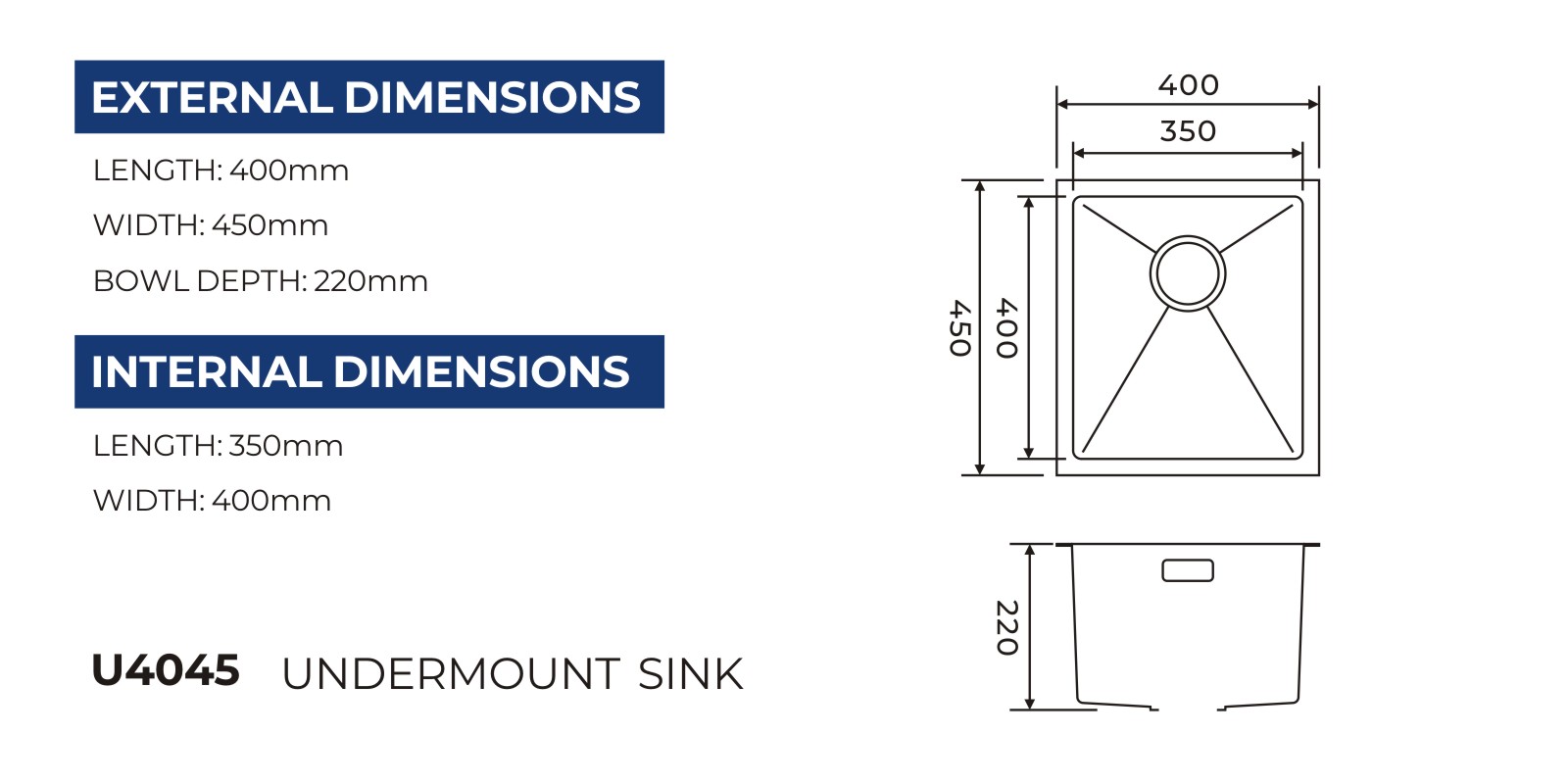

Model drawing
Use the Approved Drawing for Cutout Dimensions
The model width shown on this page is for product selection. Bowl depth, corner radius, drain position, countertop cutout and minimum cabinet size must follow the drawing approved for the order.
Selected model: U4045
- Overall size: 400 x 450 mm
- Installation: Undermount
- Cutout template: Confirm before countertop fabrication
- Cabinet and accessory clearance: Confirm by model
Order specification
Technical Specifications for OEM Orders
The values below show the available production range. The final material, thickness, finish, bowl depth and packing method are fixed in the signed order sheet.
| Material | SUS201, SUS304 or customer-specified stainless steel |
|---|---|
| Surface Treatment | Brushed finish or PVD nano color |
| Thickness | 0.5-3.0 mm production range; confirm by model and order |
| Bowl Depth | 150-350 mm; confirm on the selected drawing |
| Drain Opening | 70 mm, 90 mm, 110 mm or customized |
| Optional Accessories | Strainer, cutting board, soap dispenser, faucet, colander, bottom grid and drain pipe |
| Samples | Standard samples normally prepared within 7 days after confirmation |
| Production Capacity | Up to 10,000 pieces per month, subject to model and order schedule |
| FOB Port | Shunde, Guangzhou or Shenzhen |
| Bulk Lead Time | Approximately 25 days after deposit for confirmed standard orders |
| Payment | 30% deposit and 70% balance before shipment by T/T |
Sink construction
Product Features Shown on the Current Series
These are the construction and configuration points buyers should check on samples before approving a bulk order.
01

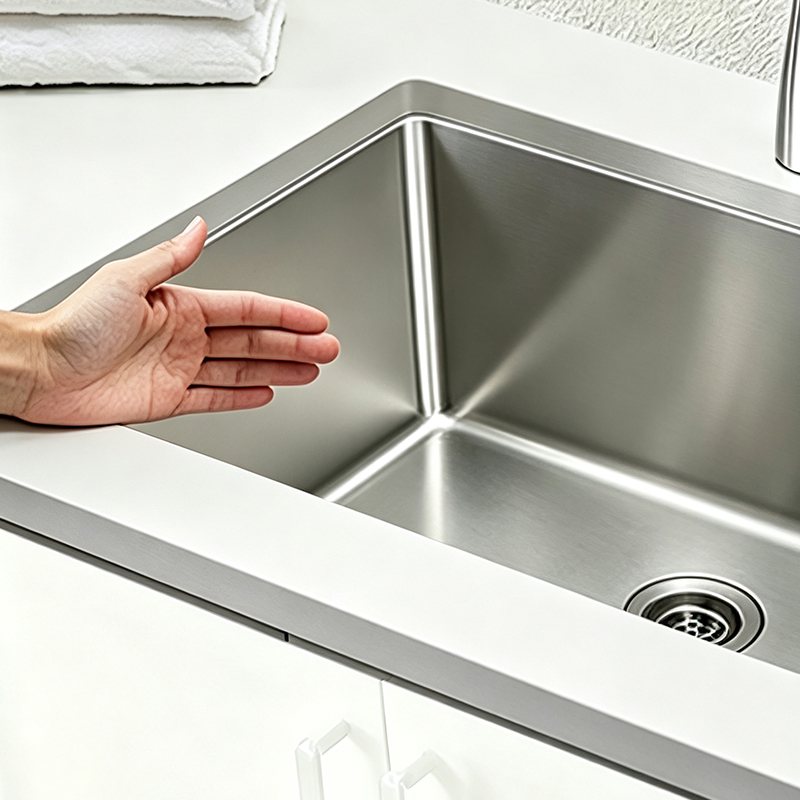

Undermount Rim
The sink edge mounts below the worktop, leaving a continuous countertop surface for wiping water and food debris into the bowl.
02
Drainage and Bowl Depth
Bottom drainage lines, drain position and bowl depth are produced to the approved model drawing and checked before packing.
03

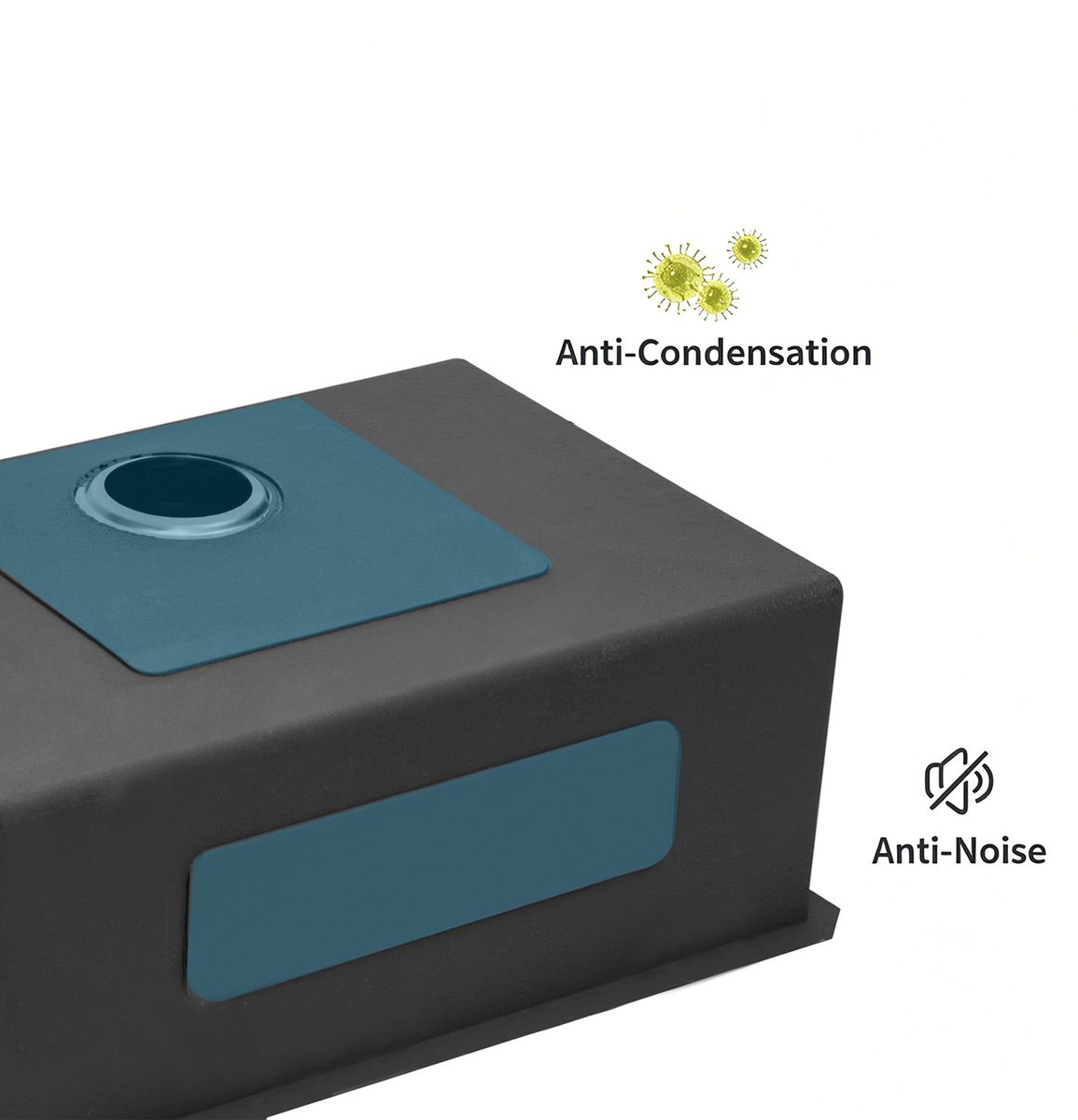

Sound and Condensation Treatment
Sound pads and anti-condensation coating can be specified by model to reduce vibration and moisture on the outside of the bowl.
04

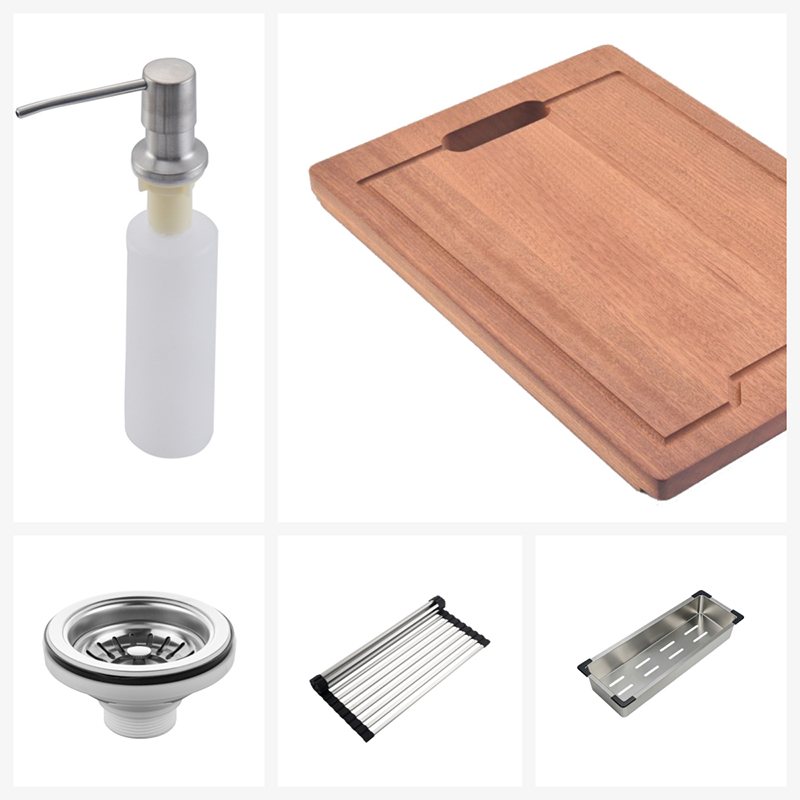

Matching Accessories
Choose the drain set, bottom grid, colander, cutting board, soap dispenser or faucet required for the retail package.
OEM / ODM options
Finish, Logo, Accessories and Packing
Choose an existing model, then submit the required steel grade, finish sample, logo file, accessory list and carton artwork. New sizes or bowl layouts require an approved drawing and sample before bulk production.
Brushed and PVD ColorApprove color and surface sample before production.
Accessory SetConfirm every included part on the packing list.
Logo and Custom SizeProvide artwork or a dimensioned drawing.

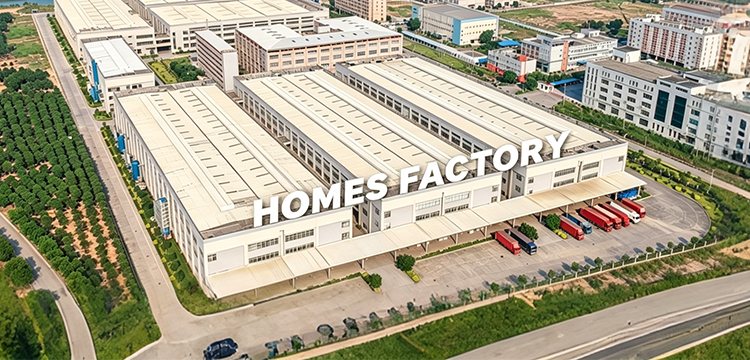

Zhongshan Homes Kitchenware Co., Ltd.
Stainless Steel Sink Production and Inspection
HOMES manufactures stainless steel kitchen sinks for brands, importers, wholesalers and project buyers. Orders move from material confirmation and cutting through forming, welding, surface finishing, inspection, packing and container loading.
Material Prepared to the Order Sheet
Steel grade, thickness and surface requirement are checked against the approved specification before production.
01Material CheckSteel grade, thickness and surface condition.
02Dimension CheckOverall size, bowl depth, drain position and flatness.
03Surface CheckWelds, brushed lines, coating and visible defects.
04Packing CheckAccessories, labels, carton marks and quantity.
Shipping method
Carton, Wooden Case or Pallet Packing
Packing is selected according to the model, accessory set, destination and loading plan. Carton dimensions, gross weight, pieces per carton and container quantity are confirmed on the final packing sheet.
After-sales service
Warranty and Replacement Terms
Applicable stainless steel sink products can be covered by a 5-year warranty against confirmed manufacturing defects. The final warranty scope, evidence required and remedy are written into the sales contract for each order.
Quality ClaimProvide model, batch, quantity, photos or video and a description of the defect.
ReviewProduction and inspection records are checked before a replacement, credit or other remedy is agreed.
Accessory SupplyMatching strainers, grids, baskets and drain pipes can be supplied for repeat orders.
Technical SupportCutout, installation and product-care questions are handled by the sales and production teams.
Order questions
Undermount Sink Series FAQ
The 14 current models are 450 mm front to back and range from 400 mm to 1000 mm in overall width. Final bowl and cutout dimensions follow the approved model drawing.
U4045 through U10045 are single-bowl models. UD8045, UD8245A, UD8245B and UD8245C are double-bowl models, including 50/50 and 60/40 layouts.
Available options include SUS201, SUS304 or customer-specified stainless steel, with brushed and PVD nano color finishes. Availability must be confirmed for the selected model and quantity.
A standard sample is normally prepared within 7 days after the specification is confirmed. Standard bulk orders are approximately 25 days after deposit; the quotation states the final schedule.
Send model numbers, quantity, destination port, steel grade, thickness, finish, drain and accessory list, logo method, carton artwork and required delivery date.
